Description
To install the Half-Out.
17 SERIES | 5 MM | SMALL DIAMETER
Spine Sorted | Straightness Sorted | Weight Sorted | Battle Proven

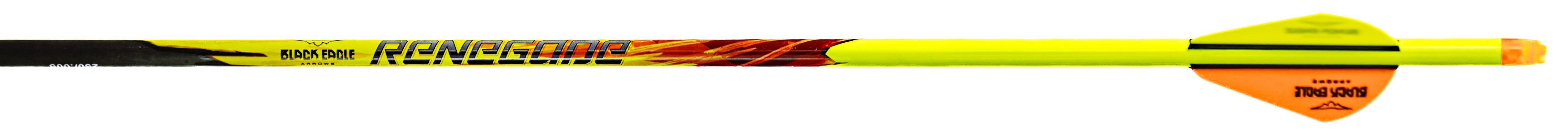

6 Pack Renegade Fletched Arrows
We designed the Renegade specifically for hunters seeking a highly accurate, small-diameter carbon arrow with exceptional durability at an affordable price. We designed this shaft to eliminate crosswind drift. It’s perfect for those long-range shots. The flight characteristics of this extremely durable shaft ensure maximum power downrange.
These arrows are perfect for hunters of all skill levels and are sure to provide you with years of reliable performance.
**Features:**
- Unmatched tolerances
- Spine sorted
- Weight sorted
**Benefits:**
- Increased accuracy
- Improved consistency
- Greater range
- More lethal impact
**Instructions:**
- Be sure to use the correct spine and weight arrow for your bow.
- Practice regularly to improve your accuracy.
ARROW SPECS:
- .005" Straightness
- ± 1 Grain Weight Tolerance
- 32.5" Shaft Length

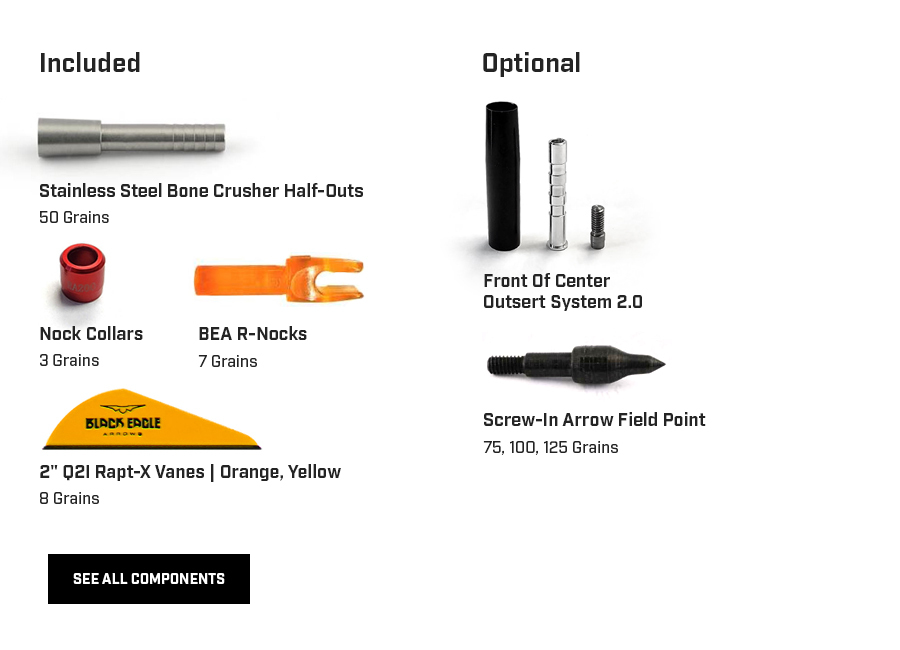

FLETCHED ARROWS INCLUDES:
- 6 Installed Black Eagle Arrows "R" Nock orange - 10 Grains Each
- 6 Stainless Steel Bone Crushing Half-Outs - 50 Grains Each
- 2" Q2I Rapt-X Vanes | Orange, Yellow - -8 Grains Each
- 6 pack Renegade Box with 6 hand fletched arrows
Specifications
Not sure what spine is right for you. Check out our spine chart.
| Spine | Inner Diameter | Outer Diameter | GPI |
|---|---|---|---|
| 250 | .204 | .280 | 10.8 |
| 300 | .204 | .275 | 10 |
| 350 | .204 | .267 | 8.7 |
| 400 | .204 | .263 | 8 |
To install the Half-Out.
- Square the end of the arrow shaft
- Dry fitting is recommended on all components. Slide half-out in shaft and spin test (if you prefer)
- If a slight wobble is noticed, DON'T PANIC! Rotate the half-out with the field point installed until the spin is true.
- Again, rotate half-out until it spins perfectly.
- Use a silver or black Sharpie and mark the shaft and the half-out for perfect alignment once glue is applied.
- We have tested our fletching glue, insert/outsert glue, and epoxy, and all of them work great.
- Apply an even amount of glue around the shaft of the Half-Out to ensure the glue channels get enough glue in them to hold.
- Once the glued half-out is finished, stand the arrow on the point to dry.
Hot melt is NOT recommended for use with Black Eagle arrow shafts.
NO cleaner for outside or inside the shaft is recommended! Use a Q-Tip or paper towel.
