Revelation Shafts
About Revelation 3:20

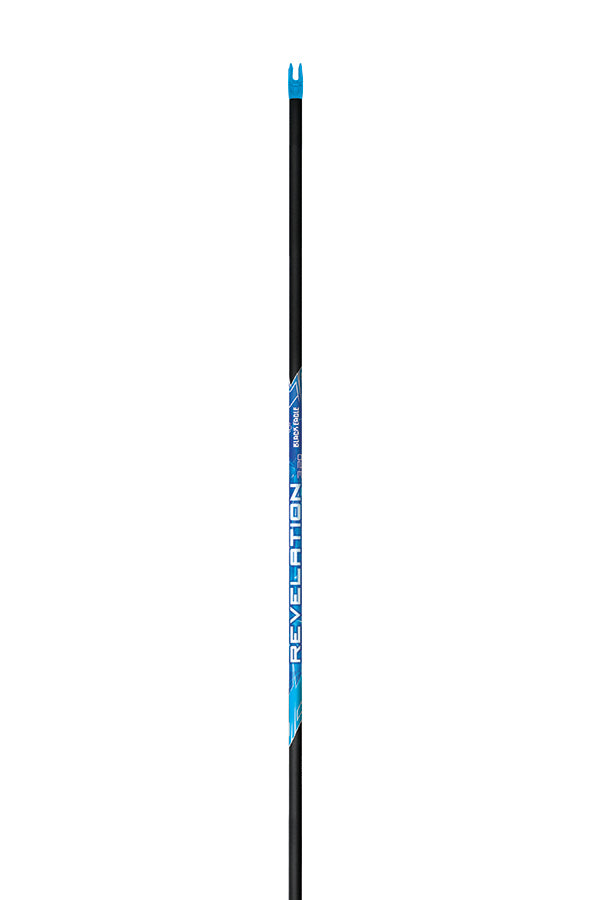

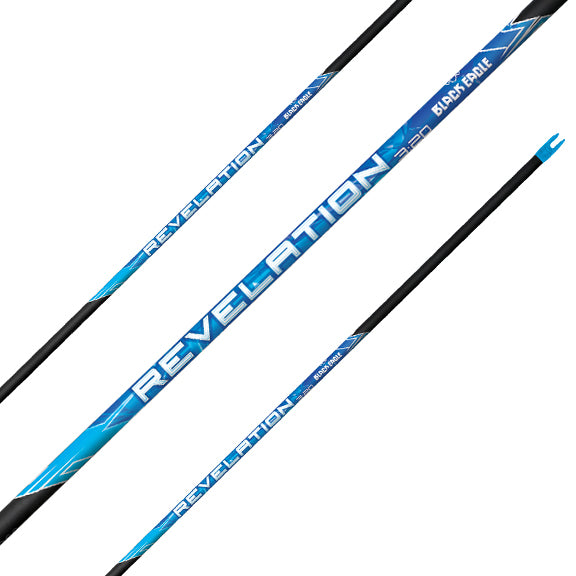

The Revelation 3:20 is a 100% high-modulus carbon shaft engineered for long-range target accuracy.
After years of development and professional field testing, Revelation has become one of the most popular ultra micro-diameter target shafts available.
Its heavy grains per inch and optimized surface area-to-mass ratio help it slice through windy conditions with exceptional consistency.
Combined with unmatched tolerances, Revelation delivers the precision needed for podium-level target competition.
Key Features
- 6/64 Series | 3.2mm Ultra Micro Diameter
- 100% High-Modulus Carbon Construction
- Designed for Long-Range Target Accuracy
- Exceptional Wind Resistance
- Built for Elite-Level Competition
Revelation 3:20 Specs
| Spine | Inner Diameter | Outer Diameter | GPI |
|---|---|---|---|
| 300 | .125" | .218" | 10.2 |
| 350 | .125" | .212" | 9 |
| 400 | .125" | .208" | 8.1 |
| 450 | .125" | .201" | 7.5 |
| 500 | .125" | .198" | 7 |
| 550 | .125" | .193" | 6.5 |
| 600 | .125" | .191" | 6.3 |
| 650 | .125" | .189" | 6 |
| 700 | .125" | .186" | 5.8 |
| 750 | .125" | .185" | 5.6 |
| 800 | .125" | .183" | 5.3 |
Revelation 3:20 Shafts Include
- 1 dozen Patent Pending Over-Fit Pin Bushings
- Required: Points and Vanes
Revelation 3:20 Components
Important Notes
Hot Melt is NOT recommended for use with Black Eagle Arrow shafts.
No cleaner for outside or inside the shaft is recommended.
